From ATAK
Control The Radio
Key up, change channel, set power, and read the meter without reaching for the handset. Eyes on the map, hands on the mission.
ATAK plugin
Radio Relay
The Radio Relay ATAK plugin bridges your BTECH radio to ATAK over Bluetooth. Every teammate’s handheld puts them on a shared live map — positions, markers, and chat riding the RF you already carry. No towers, no internet, no subscription.
Bluetooth TNC
CoT · GeoChat · PLI
Works off-grid
TAK Server bridge
Your radios become an off-grid mesh network for ATAK
01 · Pair
Connect the plugin to your radio.
Launch the plugin in ATAK and pair with your BTECH radio through the standard Bluetooth dialog. The plugin auto-detects the model and sets the correct protocol.
02 · Broadcast
Positions, markers, and chat route automatically.
The plugin pushes CoT markers, GeoChat, and position data across the radio network. Every nearby radio appears as a live contact on the ATAK map.
03 · Bridge
TAK Server relays to the rest of the force.
A gateway EUD syncs the radio net up to TAK Server and out to any operator in Network-Only Mode — HQ, other sites, any element that needs the picture.
THE DETECTION CHAIN
From first broadcast
to full picture.
No infrastructure

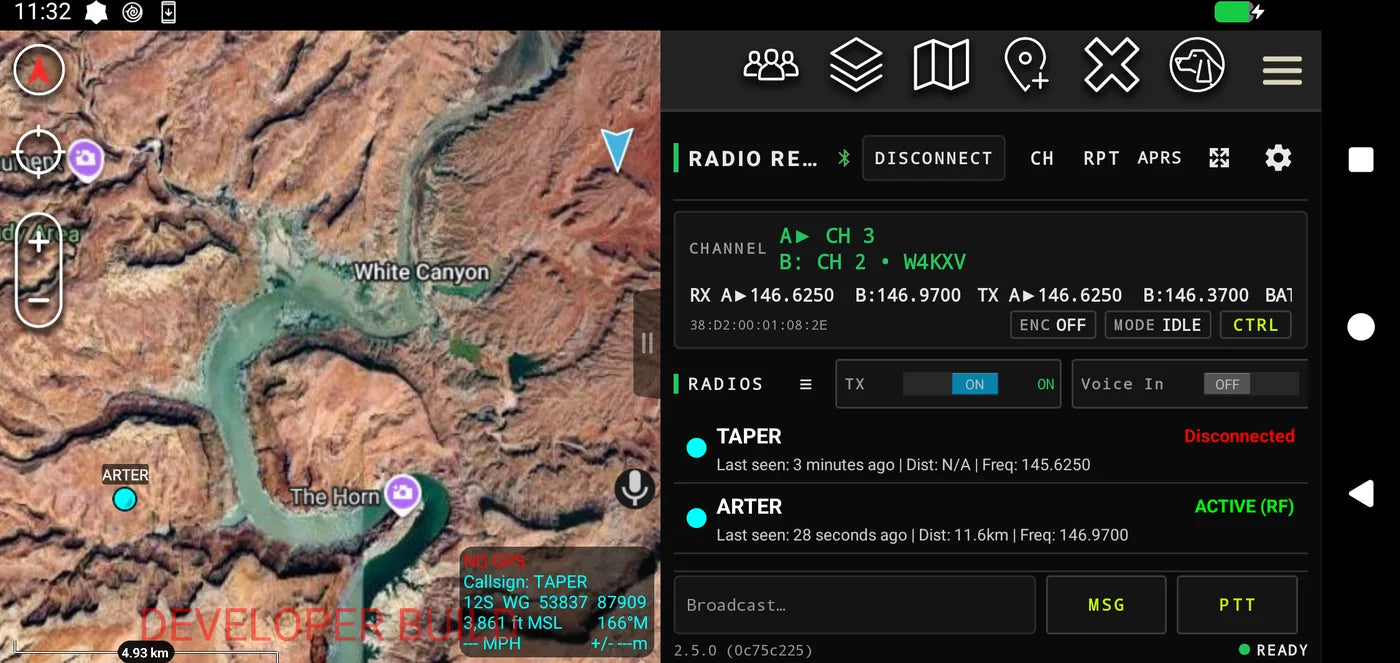

Off-Grid Mesh
Every paired and relayed radio joins one mesh and shows up as a live ATAK contact — distance, last-heard, and frequency. Positions, markers, and chat ride the RF you already carry, with no towers, no internet, and no subscription.
200,000+ repeaters

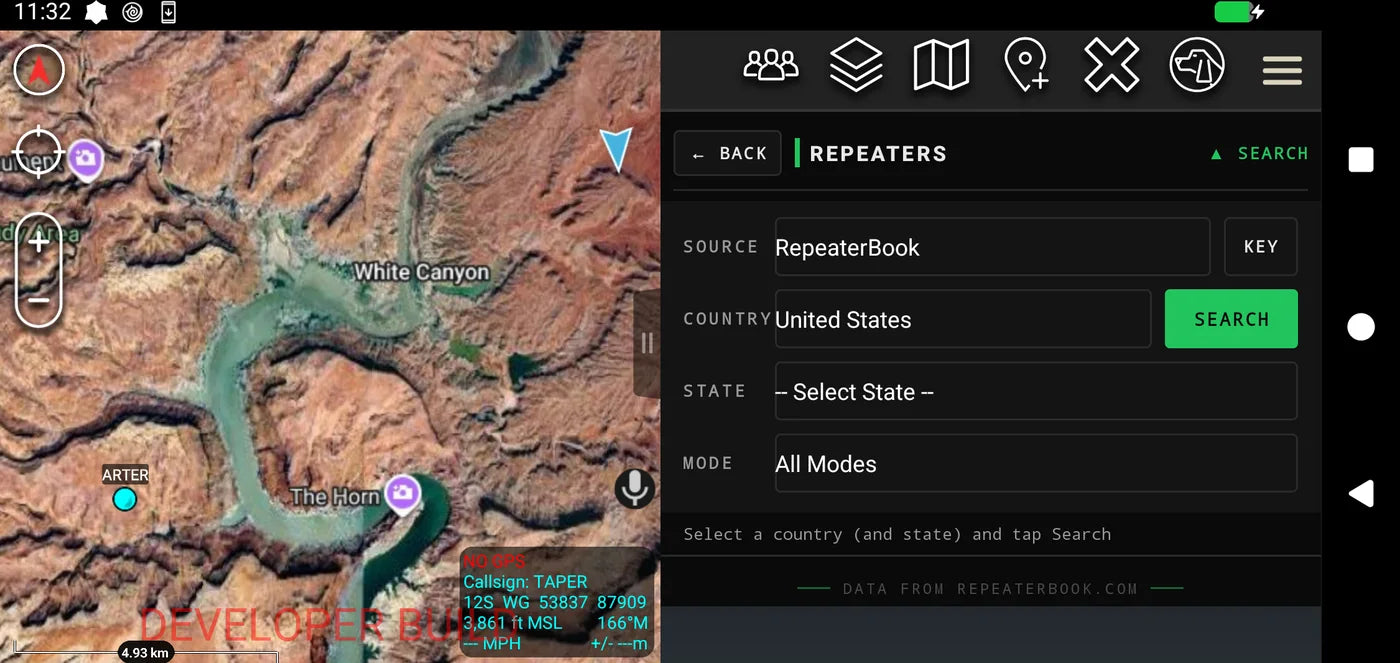

RepeaterBook Directory
Search the RepeaterBook directory from inside ATAK by country, state, and mode, then push the channel, frequency, and tone straight to the radio.
CAPABILITIES
Every capability, tested in the field.
01 RADIO Radio Integration
Bridges all in-range radios onto your off-grid EUD with options to relay over TAK Servers and MANET, displaying positions as virtual contacts visible to every operator on the team.
02 TWO-WAY Two-Way CoT Marker Sync
Relays CoT data — markers, routes, contacts — between off-grid ATAK EUDs and TAK Servers, LAN, and MANET. Syncs Meshtastic, trackers, and TAK Server contacts back to the radio network.
03 MYCELIUM MYCELIUM Mesh Networking
Self-healing mesh layer that auto-links every in-range radio into one resilient network. Individual nodes drop, the mesh rebuilds — TAK Server sees every leg, and operators stay on net even when the link to HQ goes dark.
04 TWO-WAY Two-Way Chat Bridge
Facilitates text-based GeoChat conversations between radio-equipped operators and TAK-only users. No translation layer, no message loss, no format drift.
05 EUD EUD Gateway
Every EUD acts as the gateway between the radio mesh and ATAK. Bridge multiple deployed networks, federate to allied teams, or run Network-Only when isolated — the operator's device is the bridge into the picture.
06 GLOBAL Global Repeater Panel
Live repeater data from networks worldwide, pulled directly into the plugin. Search by frequency, callsign, or proximity — push the selected repeater to your radio in one tap.
DEMOS & DEEP DIVES
See it in action.
Product walkthroughs, operator field reports, and technical deep dives. Run on real hardware, not marketing footage.
Off Grid ATAK Comms Using the BTECH UV-PRO
UP NEXT
COMPATIBILITY
Supported radios.
Bluetooth-TNC radios you already field — auto-detected on pairing, tested against production ATAK builds.
SUPPORTED BTECH UV-PRO Series
The most cost-effective Bluetooth-TNC radio that works with ATAK. Covers the UV-PRO handheld and the UV-50PRO 50-watt mobile/base — the plugin auto-detects the model on pairing and sets the correct protocol.
View the UV-PROSUPPORTED Hytera HP7 Series
Commercial-band radios with advanced encryption — HP782, HP702, and HM782. Same one-tap pairing and full CoT, GeoChat, and position bridging.
View HP7 radiosEXPERIMENTAL Generic TNC - Digirig
Experimental. The plugin can bridge a radio through a Digirig interface as a generic KISS TNC, so a set without a Bluetooth TNC of its own can still put positions and chat on the map. Treat it as experimental: it is unvalidated across radio models, cables, and audio levels, so expect to tune the setup yourself and don't plan a program around it yet. Tell us what you are running and we'll help you get it working.
COMING SOON Additional BT TNC radios
More Bluetooth-TNC models are being tested and added. Need a specific radio verified for your program? Contact support.
Ask about a radio
GET IT WORKING
Everything you need to run it.
A radio to bridge, a manpack to relay it, and a mobile EUD to run ATAK. Pair any of these with the plugin and you're on the map.
HANDHELD

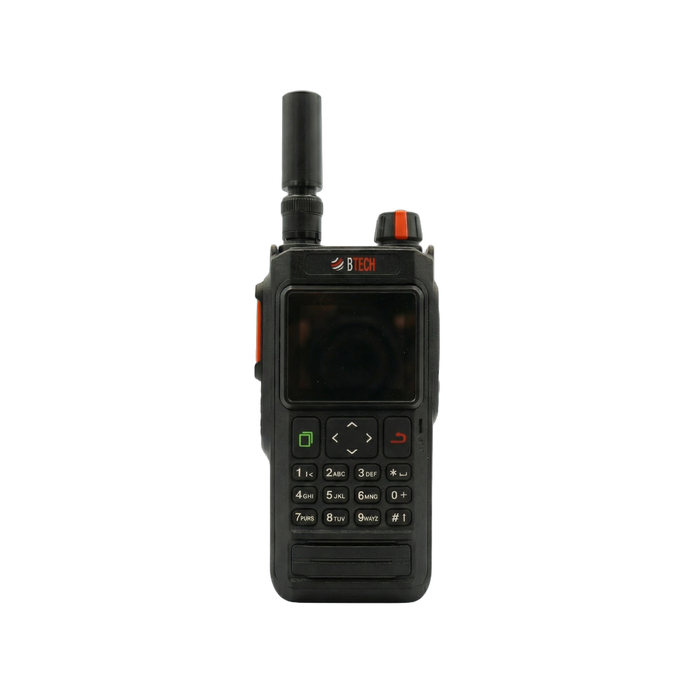

BTECH UV-PRO
Bluetooth-TNC handheld — bridges to ATAK.
From $160.00
View the radio
MOBILE

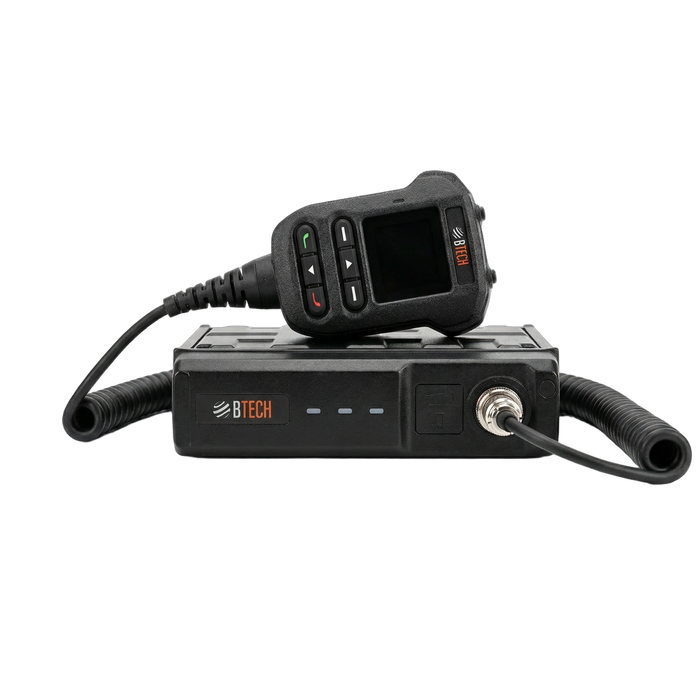

BTECH UV-50PRO
50 W dual-band mobile — reach the repeater.
From $320.00
View the UV-50PRO
MANPACK

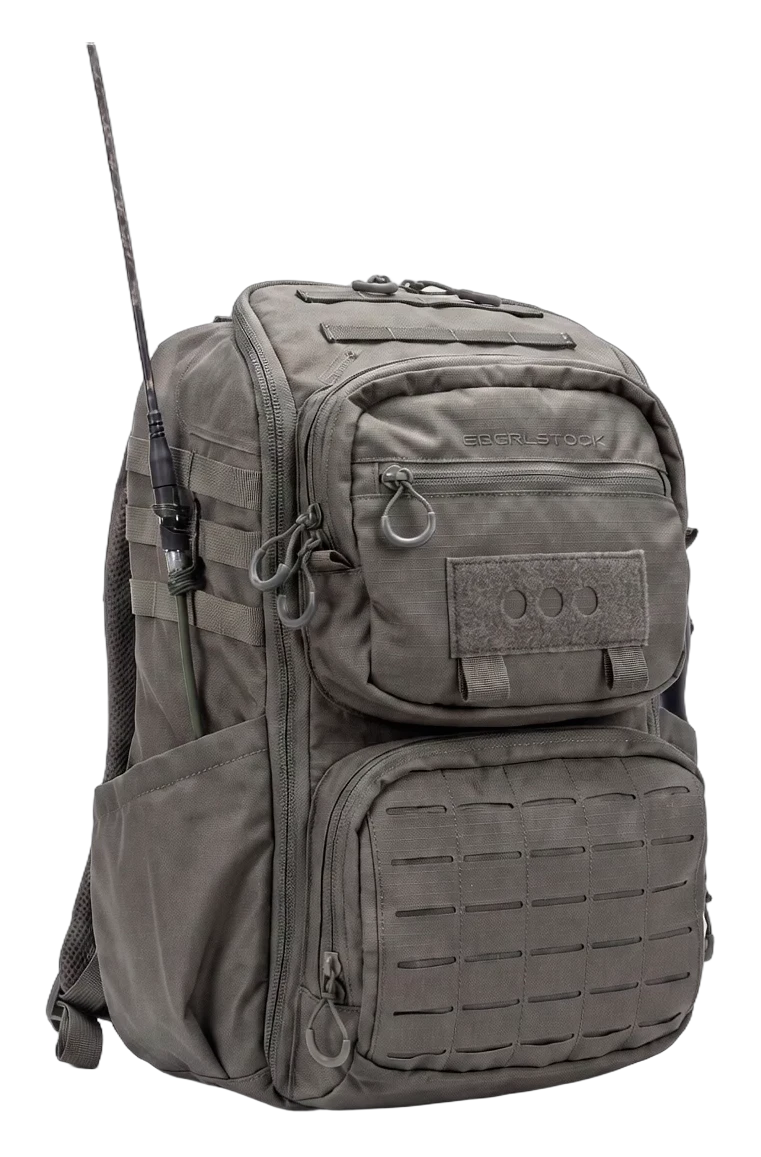

Radio Manpack
Off-grid 50 W relay — extends the whole net.
View the manpack
EUD

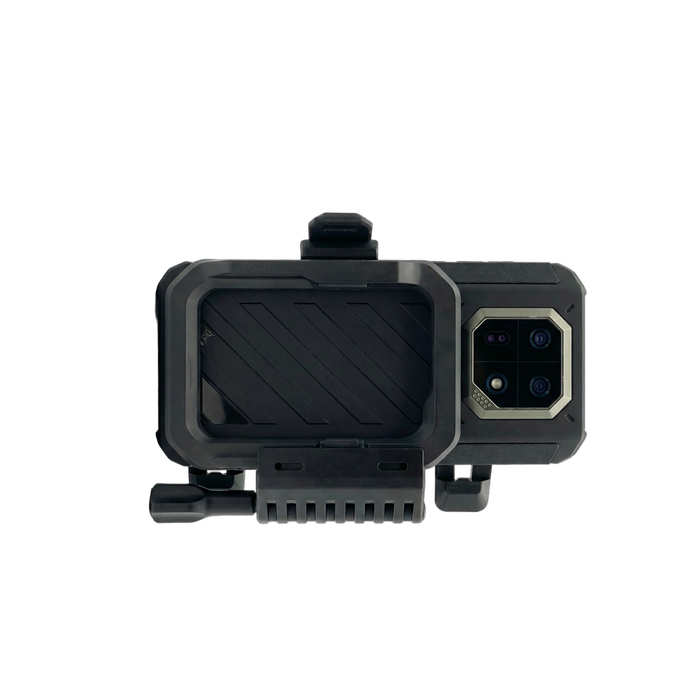

GoTAK EUD V2
Rugged Android EUD — runs ATAK and the plugin.
From $500.00
View the EUD V2
LICENSING
Pick the term that fits the program.
Annual for short programs and pilots. Lifetime for operational rollouts and permanent deployments. Both include every update during the license term.
TERM: ANNUAL
Annual License
$100
/ device / year
- ✓ Full plugin functionality
- ✓ All BTECH radio model support
- ✓ Plugin updates for license term
- ✓ Knowledge base + Discord support
- ✓ Transferable with approval
RECOMMENDED
TERM: LIFETIME
Lifetime License
$200
/ device, one-time
- ✓ Everything in Annual
- ✓ No renewal, no annual lapse risk
- ✓ All future plugin updates included
- ✓ Priority support channel
- ✓ Team and fleet pricing available
Volume pricing available for fleets of 10+ devices. Contact sales for quotes on SEWP V, GSA, and SBIR contract vehicles.
READY TO FIELD IT
Your team. Your radios. One coherent picture.
License the plugin in under 2 minutes. Or book a scoping call if you're deploying to a team of 10+ and need a volume quote.
- ✓ Ships instant via email
- ✓ Annual or lifetime
- ✓ Fleet pricing available
