SYNAPSE-P
Tech Specs
- Base platform: Durabook Z14I fully rugged laptop
- Processor: Intel Core Ultra 5 / Ultra 7 (up to Ultra 7 165U, 12 cores) with Intel AI Boost NPU
- Memory: 16 GB up to 64 GB DDR5-5600
- Storage: 256 GB NVMe standard, up to 2 TB · optional 2nd NVMe and 3rd SATA drive · optional RAID 0/1/5/10 expansion · OPAL 2.0 option
- Graphics: Intel Graphics · optional NVIDIA RTX A500
- Display: 14.0" FHD, 1,200-nit DynaVue sunlight-readable multi-touch — finger, glove, and stylus modes

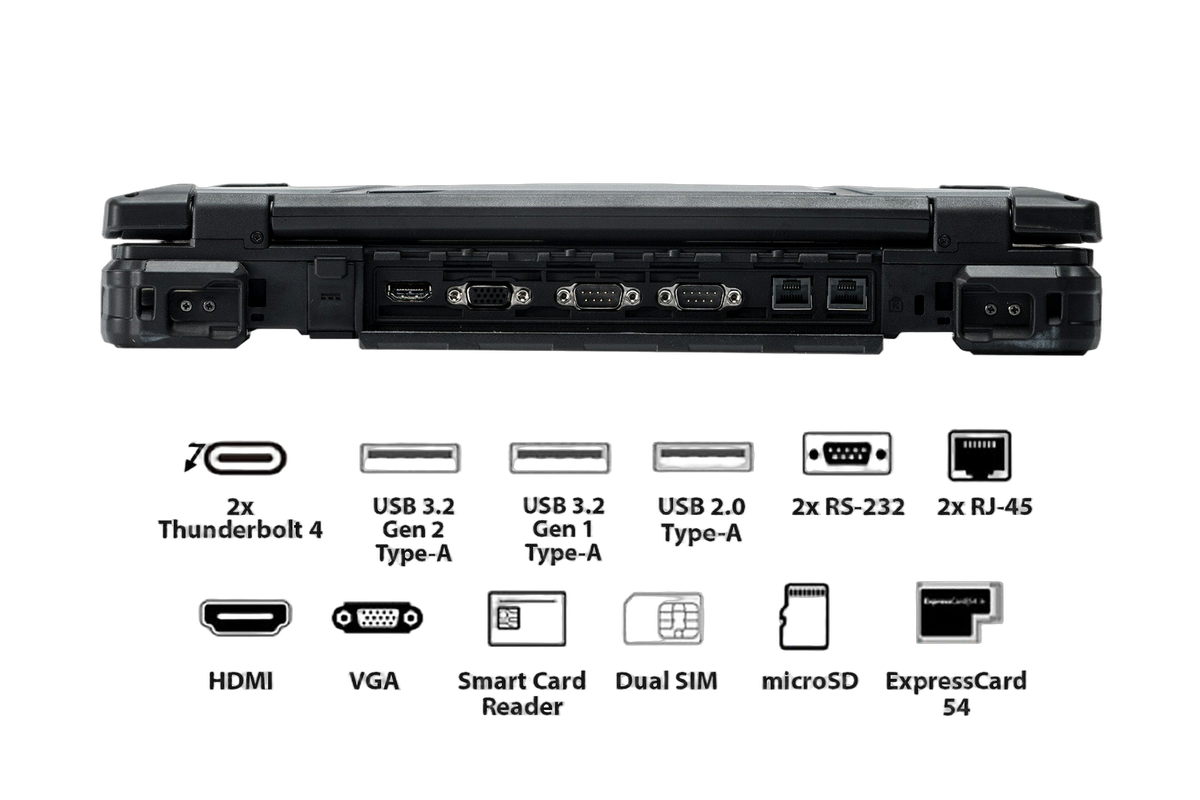

- I/O: 2 × Thunderbolt 4, 3 × USB-A, 2 × RJ45 gigabit Ethernet, 2 × RS-232/422/485 serial, HDMI 2.1, VGA, microSD, ExpressCard 54, smart card reader
- Wireless: Wi-Fi 7, Bluetooth 5.4 · optional 4G LTE or 5G (Nano SIM + eSIM) · optional dedicated GPS

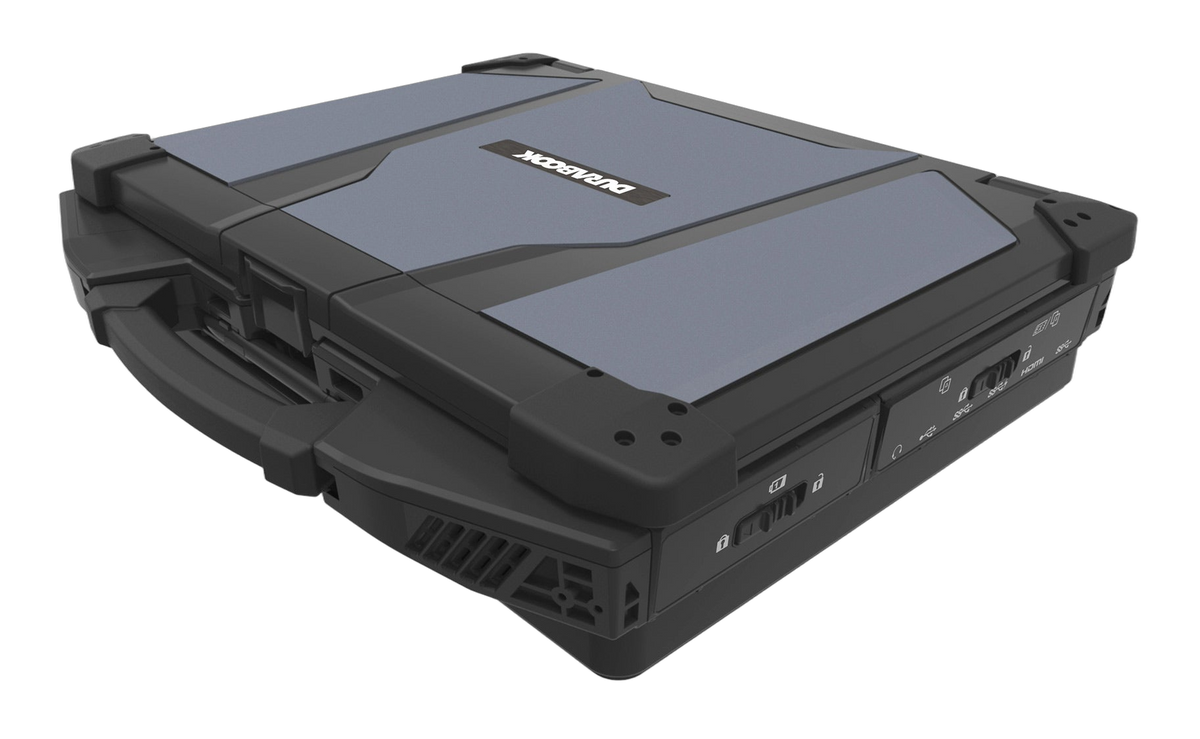

- Expansion: optional military-grade connectors, PCIe 3.0 (2 slots), discrete graphics, RAID storage
- Power: 6,900 mAh main battery · optional 2nd battery · optional bridge battery for hot-swap
- Environment: operating −29 °C to 63 °C · storage −51 °C to 71 °C
- Size and weight: 356 × 280 × 50 mm, 3.6 kg (varies with options)
- OEM certifications: MIL-STD-810H, MIL-STD-461G, IP66, 6-foot drop
Features
- Full TAK OS onboard as a self-hosted TAK Server — ATAK, WinTAK, and iTAK clients connect directly
- Server and workstation in one: run the operation from the built-in 14-inch display and keyboard
- The complete TAK OS capability set — tracking, mapping, secure team comms, video, and drone feeds
- Offline AI workflows on the onboard NPU or optional NVIDIA RTX A500 — nothing leaves the machine
- Fully offline operations: pre-load map layers and run the whole picture with zero uplink

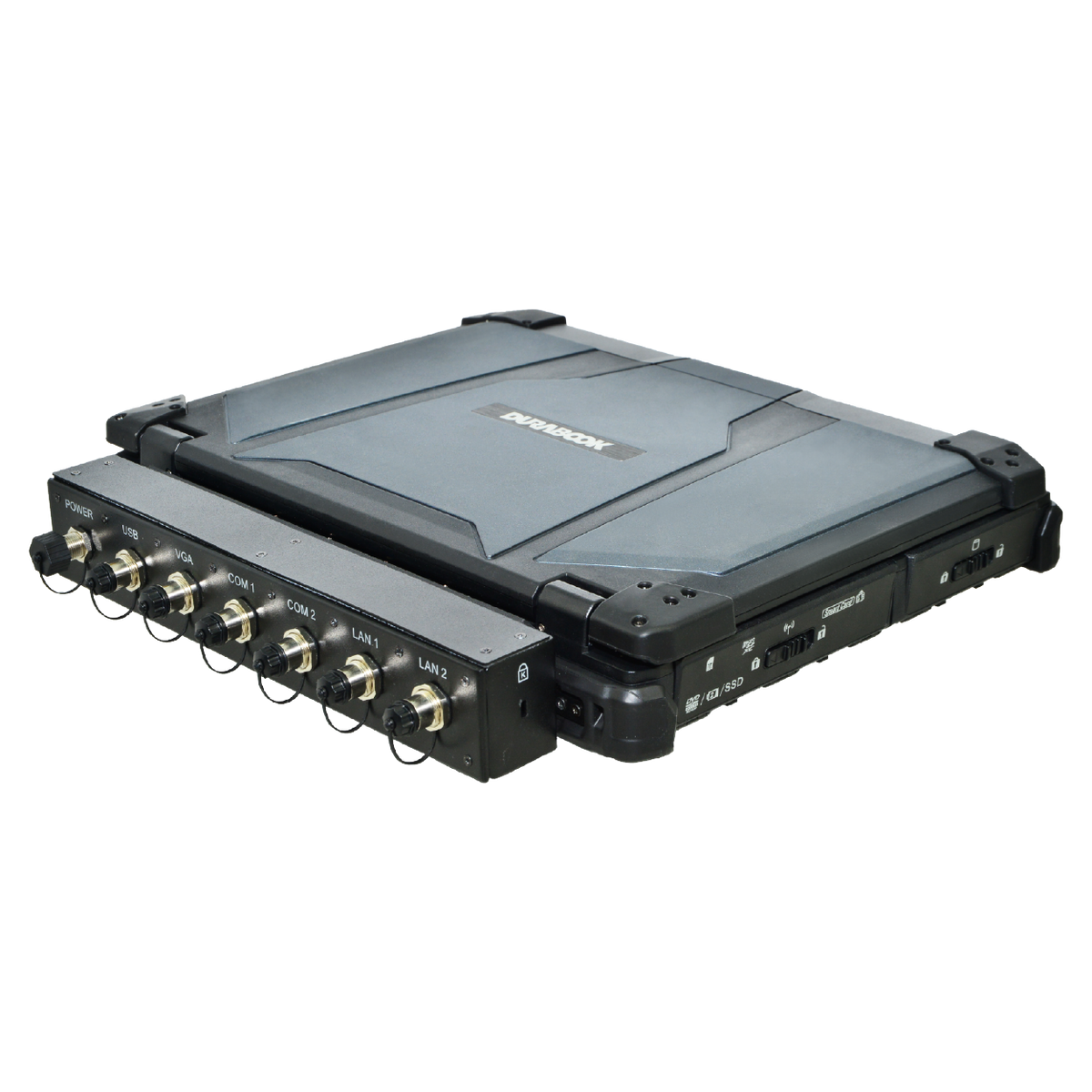

- Adapted for MIL components: military-grade connector expansion, RF antenna pass-through, serial and dual Ethernet

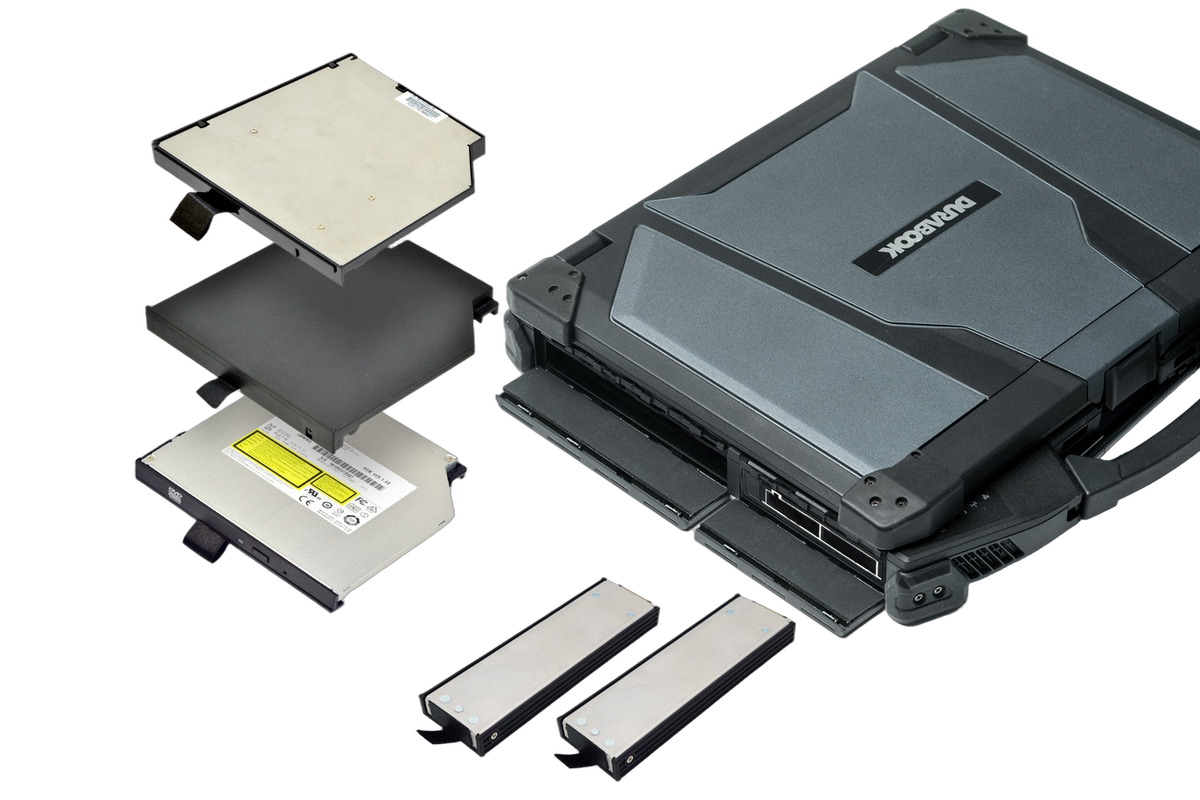

- Two tool-free quick-release NVMe SSDs — pull the data, leave the chassis
- TPM 2.0, smart card reader, stealth mode, and night-vision mode
- Hot-swappable batteries for continuous operation
Why SYNAPSE-P
A TAK server usually lives somewhere you aren't, and the screen you watch it on is a separate machine. SYNAPSE-P is ^both in one chassis^: the ^full TAK OS^ capability set on a fully rugged laptop, with ^offline AI workflows^ running onboard and ^military-grade connectors^ where your cabling needs them. Open the lid and the server is up — ^uplink or no uplink^.
DDR5 memory, maximum
Nits — sunlight-readable display
Dual-battery runtime, OEM benchmark
Uplink needed for the COP
Inside the machine
Open the lid.
The server is up.

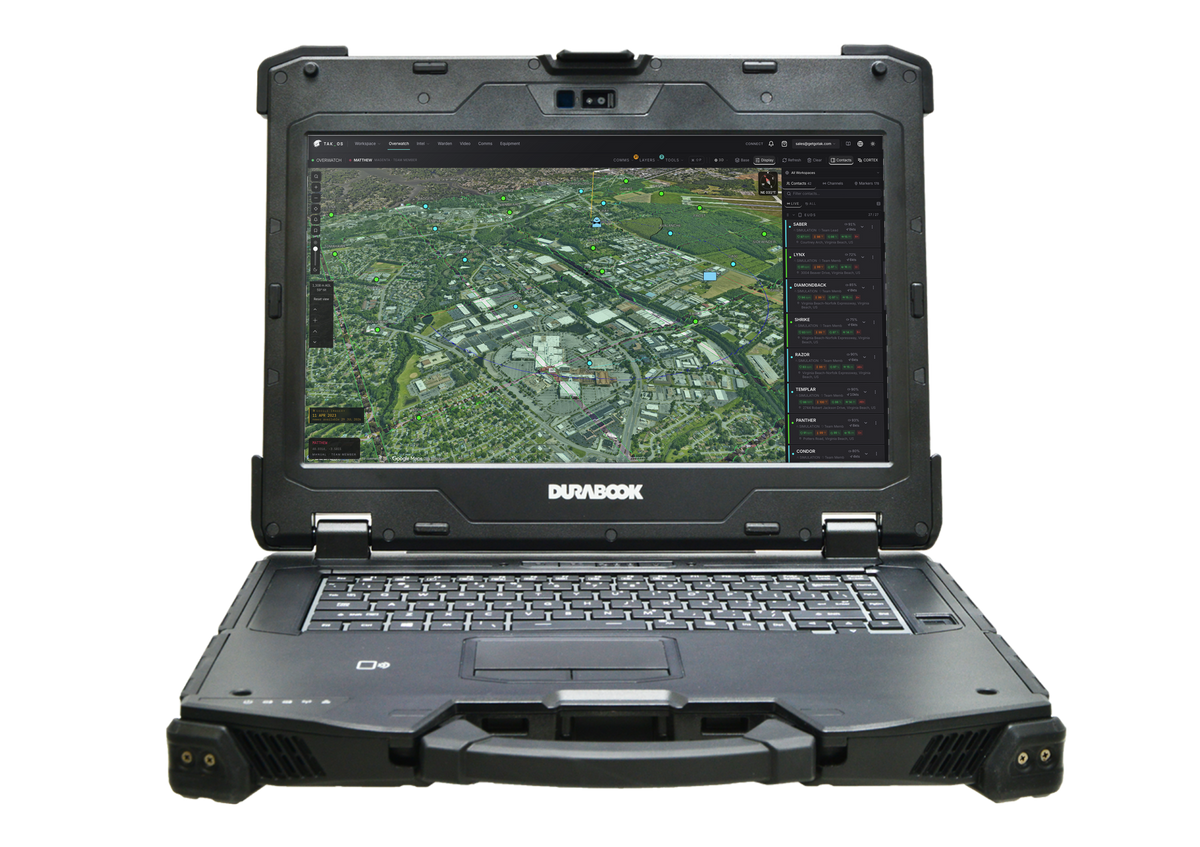

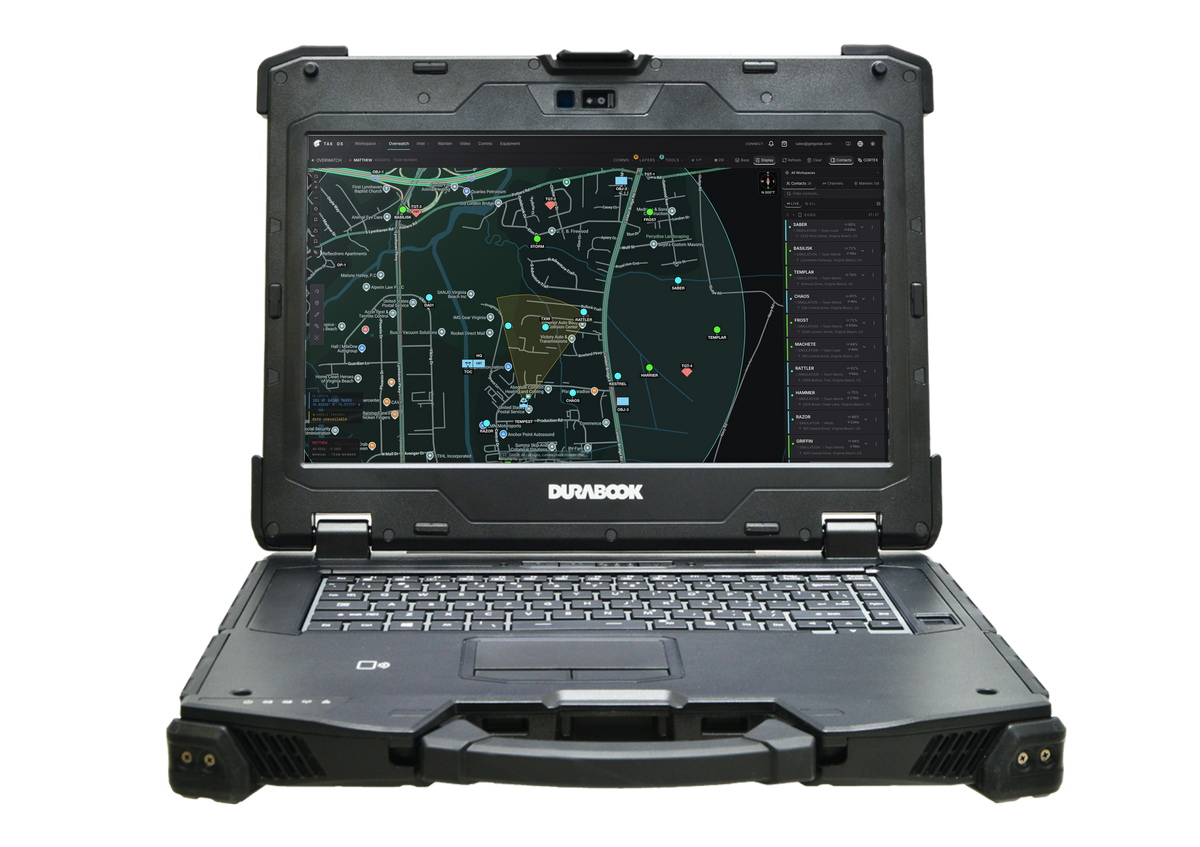

TAK OS Overwatch · 14-inch displayTAK OS Overwatch · 14-inch display
NPU onboard · RTX A500 optionNPU onboard · RTX A500 option

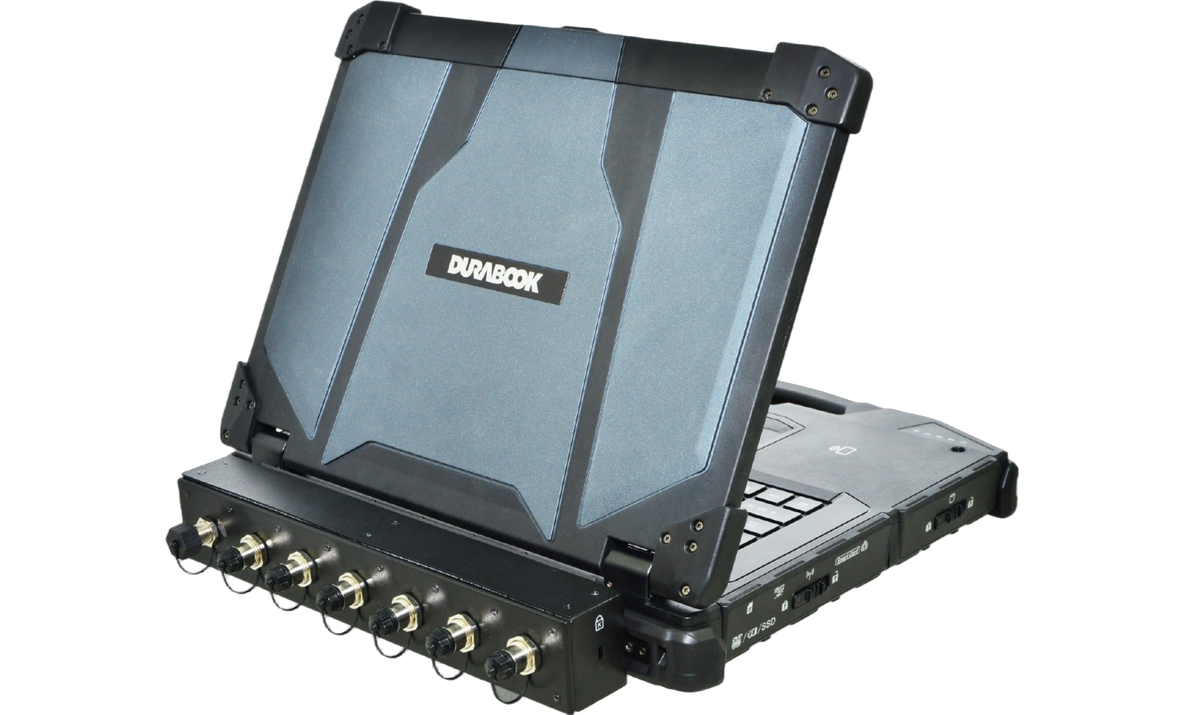

MIL connectors · RF pass-throughMIL connectors · RF pass-through

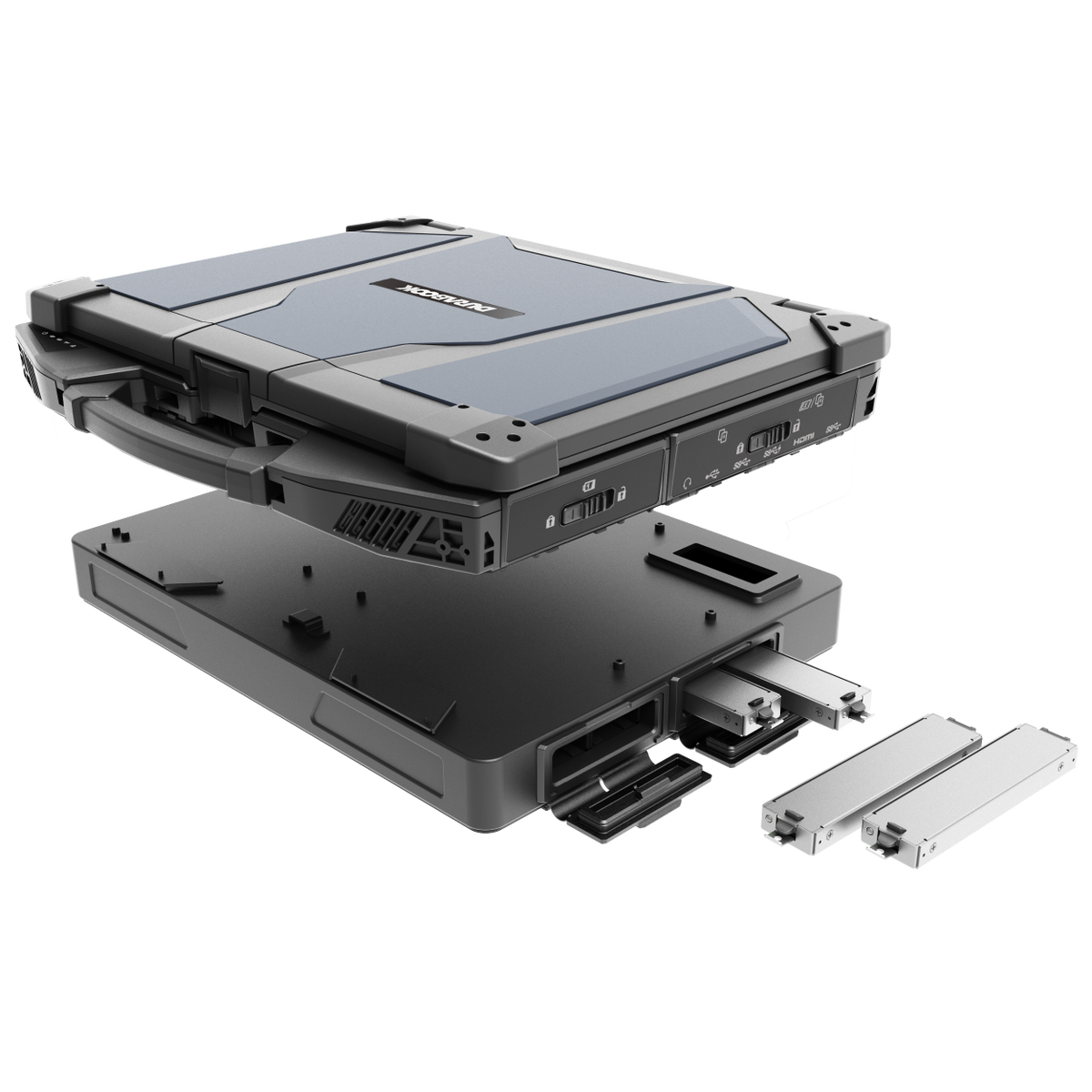

Quick-release NVMe · RAID optionQuick-release NVMe · RAID option
Built on a certified platform
Rugged where it counts. Proven by the maker.
SYNAPSE-P is built on the Durabook Z14I, which its manufacturer certifies to MIL-STD-810H, MIL-STD-461G, and IP66, with a six-foot drop rating and a magnesium-alloy chassis. It works from −29 °C to 63 °C and stays readable in direct sun.
Choose your SYNAPSE
Node in a case.
Or server you sit at.
Both run TAK OS onboard with no cloud dependency. SYNAPSE-L is the drop-and-go node that brings its own network and uplink. SYNAPSE-P adds the operator seat, heavier compute for offline AI, and military-grade connectors.
| Server node SYNAPSE-L | Server + workstation SYNAPSE-P This page | |
|---|---|---|
| Role | SYNAPSE-L Server node and team network, in a case. | SYNAPSE-P Server and operator workstation, in a laptop. |
| TAK server | SYNAPSE-L TAK OS onboard. | SYNAPSE-P TAK OS onboard — the full capability set. |
| Operator seat | SYNAPSE-L Status touch display. Bring your own screen. | SYNAPSE-P 14-inch 1,200-nit touch display and backlit keyboard. |
| Compute | SYNAPSE-L Jetson Orin or SBC — 16 GB RAM, 256 GB SSD. | SYNAPSE-P Intel Core Ultra with NPU — up to 64 GB RAM, optional RTX A500. |
| Team network | SYNAPSE-L WiFi 6 access point for 20+ devices, dual-SIM 5G, satellite WAN. | SYNAPSE-P Two gigabit Ethernet ports, Wi-Fi 7, optional 4G/5G. Joins your network. |
| Connectors | SYNAPSE-L IP67-sealed standard ports. | SYNAPSE-P Military-grade connector expansion, RF pass-through, serial. |
| Pricing | SYNAPSE-L Quoted per configuration. | SYNAPSE-P Quoted per configuration. |
Run them together: SYNAPSE-L carries the network, SYNAPSE-P runs the operation.
See SYNAPSE-L →FAQ
The questions
people ask first.
Configuration and integration support direct from sales.
How is SYNAPSE-P different from SYNAPSE-L?+
Both run TAK OS onboard as a self-hosted TAK Server. SYNAPSE-L is a server node in a carry-on case that also brings the team's WiFi network and 5G / satellite uplink. SYNAPSE-P is a fully rugged laptop: the server plus a full operator workstation — display, keyboard, heavier compute for offline AI, and military-grade connector options. Many teams run one of each.
What does "full TAK OS capabilities" mean here?+
The same TAK OS you'd otherwise reach in the cloud, running locally on the laptop: team tracking, mapping, secure team comms, video, and drone feeds, with ATAK, WinTAK, and iTAK clients connecting directly. Nothing is a lite version, and none of it needs an internet connection.
What are the offline AI workflows?+
AI workloads that run entirely on the machine. The Intel Core Ultra processor includes a dedicated NPU, and you can configure an optional NVIDIA RTX A500 and up to 64 GB of memory for larger models. Nothing is sent to a cloud service. Tell us what you want the AI to do and we'll size the configuration for it when we quote.
What does "adapted for MIL components" include?+
The Z14I platform accepts an expansion box with military-grade circular connectors in place of consumer ports, plus RF antenna pass-through for GPS, cellular, and Wi-Fi. It also has two RS-232/422/485 serial ports and two gigabit Ethernet ports for radios and legacy gear. Connector types and pinouts are scoped to your cabling during quoting.
Does it work with no internet at all?+
Yes. The TAK server runs locally, map layers are pre-loaded, and the AI runs on the machine. An uplink adds reach — optional 4G LTE or 5G is available — but it is never required for the local picture.
How do my team's devices connect to it?+
Over your network: plug SYNAPSE-P into a switch or router on one of its two gigabit Ethernet ports, or join it to an existing Wi-Fi network, and clients connect to it like any TAK Server. If you need it to bring the field network and uplink too, pair it with a SYNAPSE-L or a Global-Link 5G.
How rugged is it, and whose ratings are those?+
The ratings belong to the base platform. Durabook certifies the Z14I to MIL-STD-810H, MIL-STD-461G, and IP66, with a six-foot drop rating, a magnesium-alloy chassis, and an operating range of −29 °C to 63 °C. Ask us how a specific expansion option affects them for your build.
How long does it run on battery?+
Durabook's benchmark is up to 12.5 hours on the main battery and 21.5 hours with the second battery fitted. Running a server and AI workloads draws more than that benchmark, so plan on less. Batteries are quick-release, and the optional bridge battery lets you swap them without shutting down.
How do I get pricing?+
SYNAPSE-P is quoted per configuration — processor, memory, storage, graphics, connectors, and any EUDs or accessories you want bundled. Use Request a Quote or email sales@getgotak.com. Agencies can email for a formal quote against a PO.
More questions? Talk to sales at sales@getgotak.com.
Talk to Sales →SYNAPSE-P · Portable TAK OS server + workstation
The server left the rack. Now it has a keyboard.
Full TAK OS, offline AI workflows, and military-grade connector options on a fully rugged 14-inch laptop — the server your team connects to and the workstation you run it from.
Quoted per configuration · Durabook Z14I base · TAK OS onboard
