MOHOC 2
Fully compatible with ATAK, TAK_OS and ECHO by GoTAK.
Put live video on the device you already carry. MOHOC 2 connects a low-profile helmet camera to a compatible EUD, radio or power/data hub. Share the view through HelmCam and your configured TAK video network.

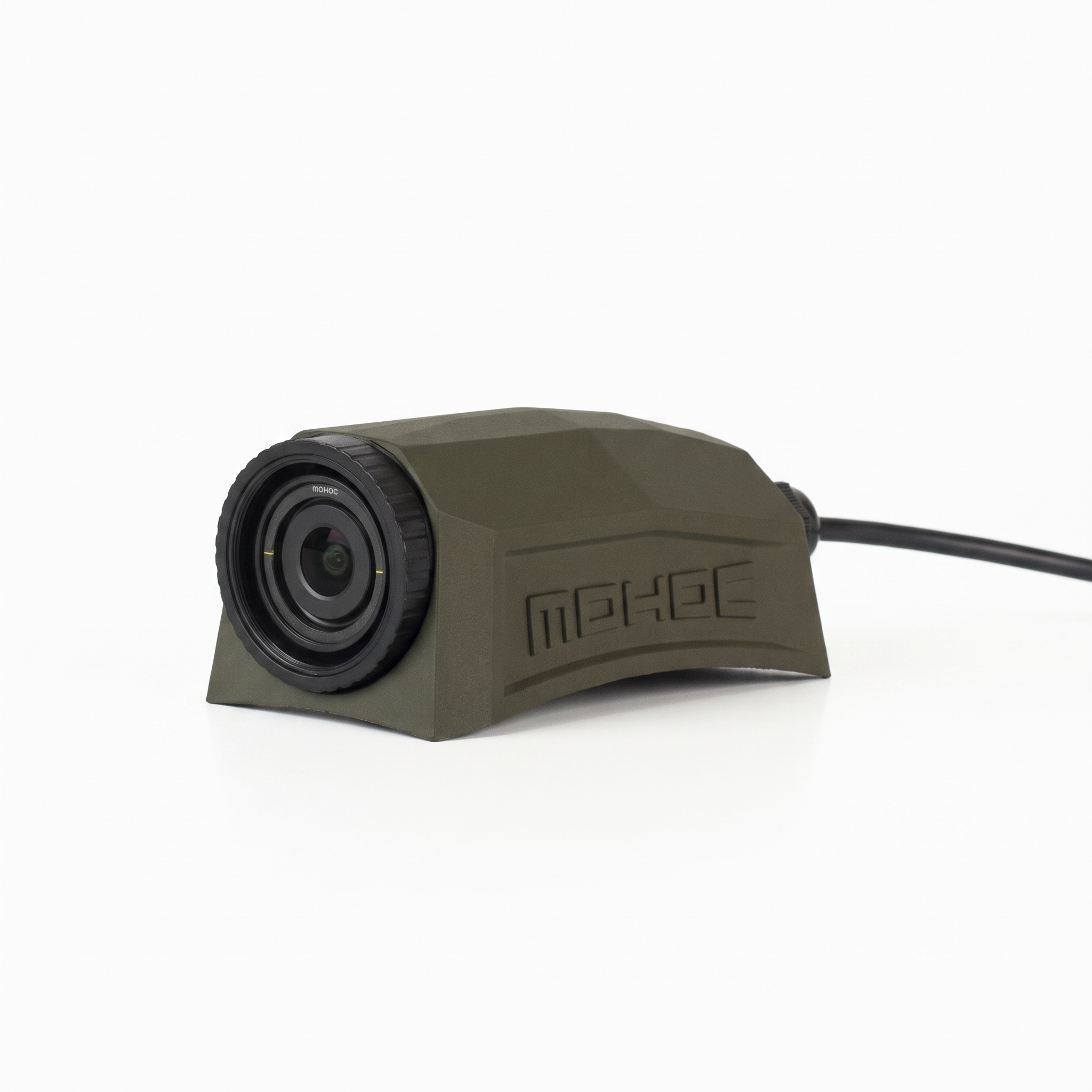

Live video from the field
Share what you see.
A camera at your point of view gives the team visual context. Stream through a compatible USB-UVC host and use the HelmCam Android app and TAK plugin to send video to a remote server.
Your host device, network and video server complete the connection.

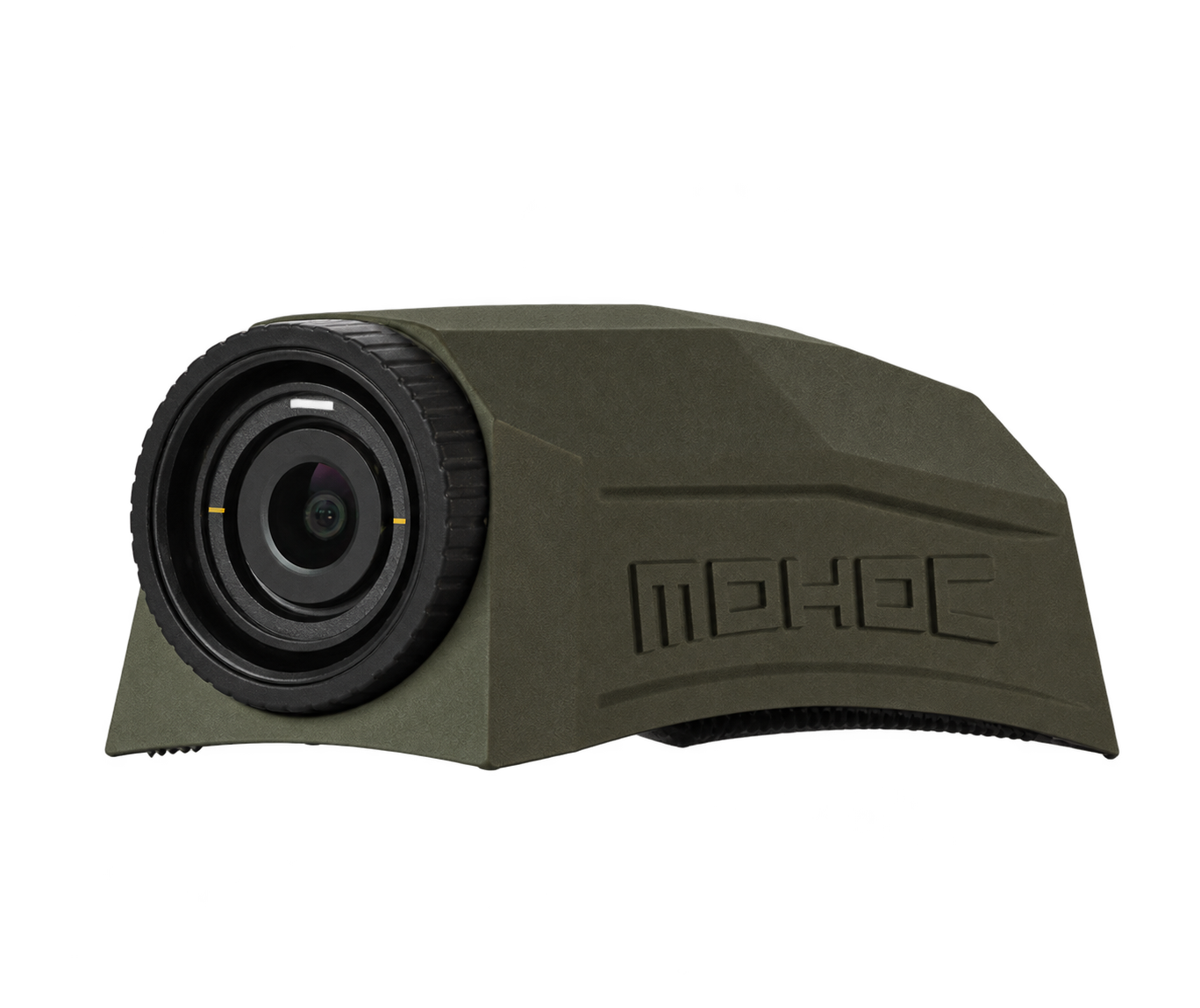

Low-profile helmet camera
Made to follow your view.
The curved base sits close to the helmet. Hook-and-loop attachment keeps the mounting setup simple, while the rotating lens lets you level the image for your mounting position.
- 71g cameraA compact camera body, measuring 80 × 41 × 32mm.
- 190° lens rotationManually set the image level without changing the mounting position.
- 120° field of viewA wide view through an F2.0 lens.

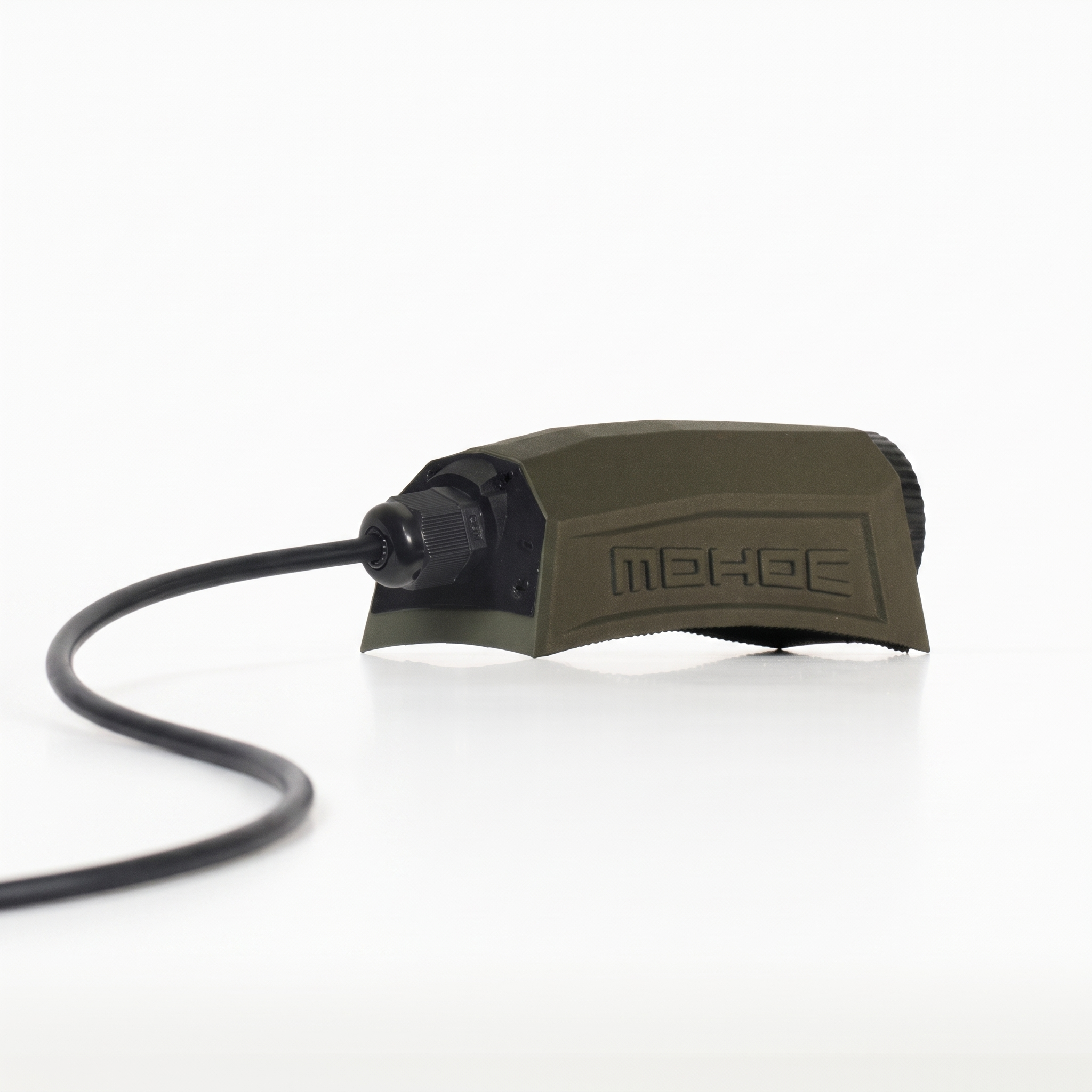

USB power and video
One cable. A live connection.
This listing uses the fixed standard USB-A configuration. Connect to a compatible USB-UVC input; check your EUD, radio or hub for the required host mode and adapter.
- USB 5VMaximum camera power draw: 180mA.
- 1080p or 720pMJPEG video at up to 25/30 frames per second.
- Host compatibilityDesigned for USB-UVC video inputs, including compatible power/data hubs.

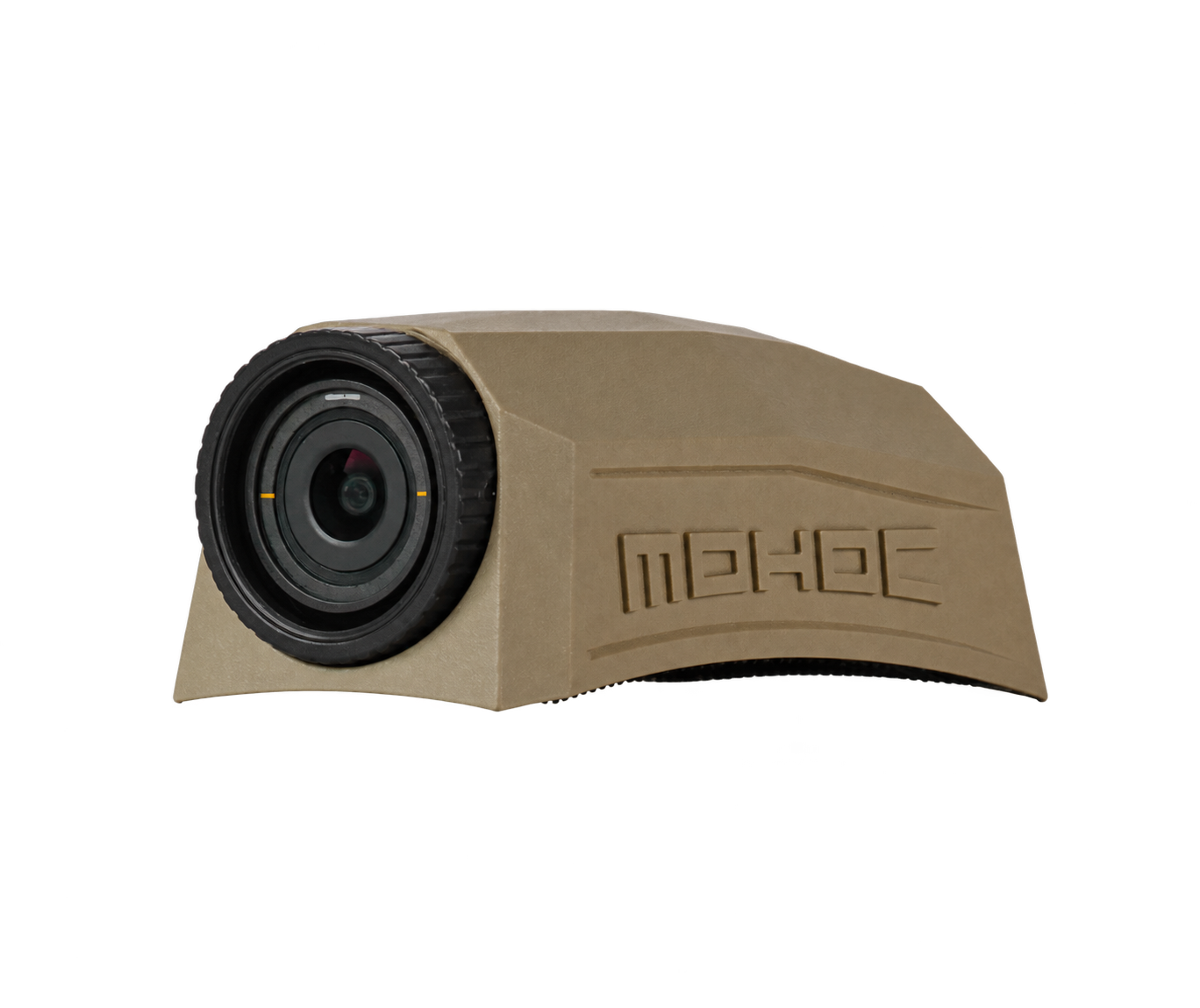

In the box
Ready for your mounting setup.

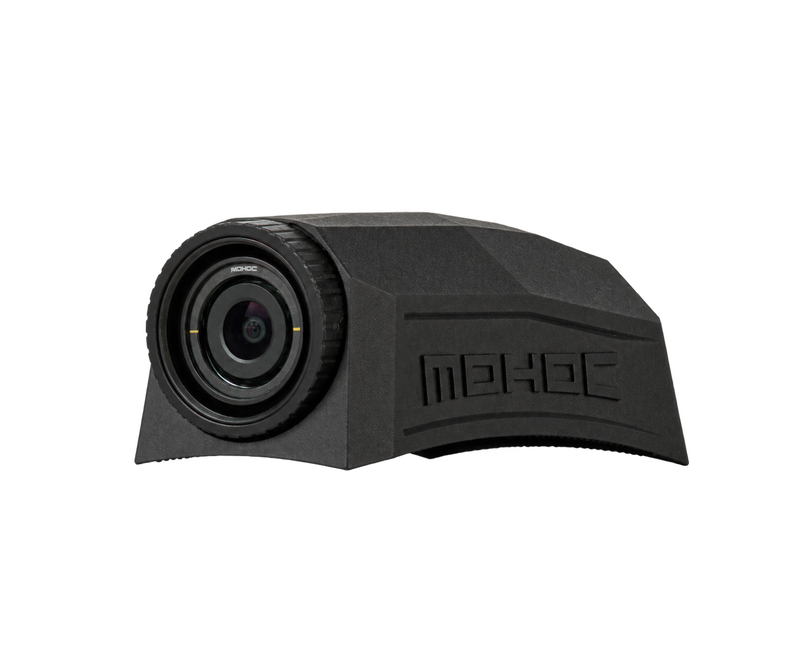

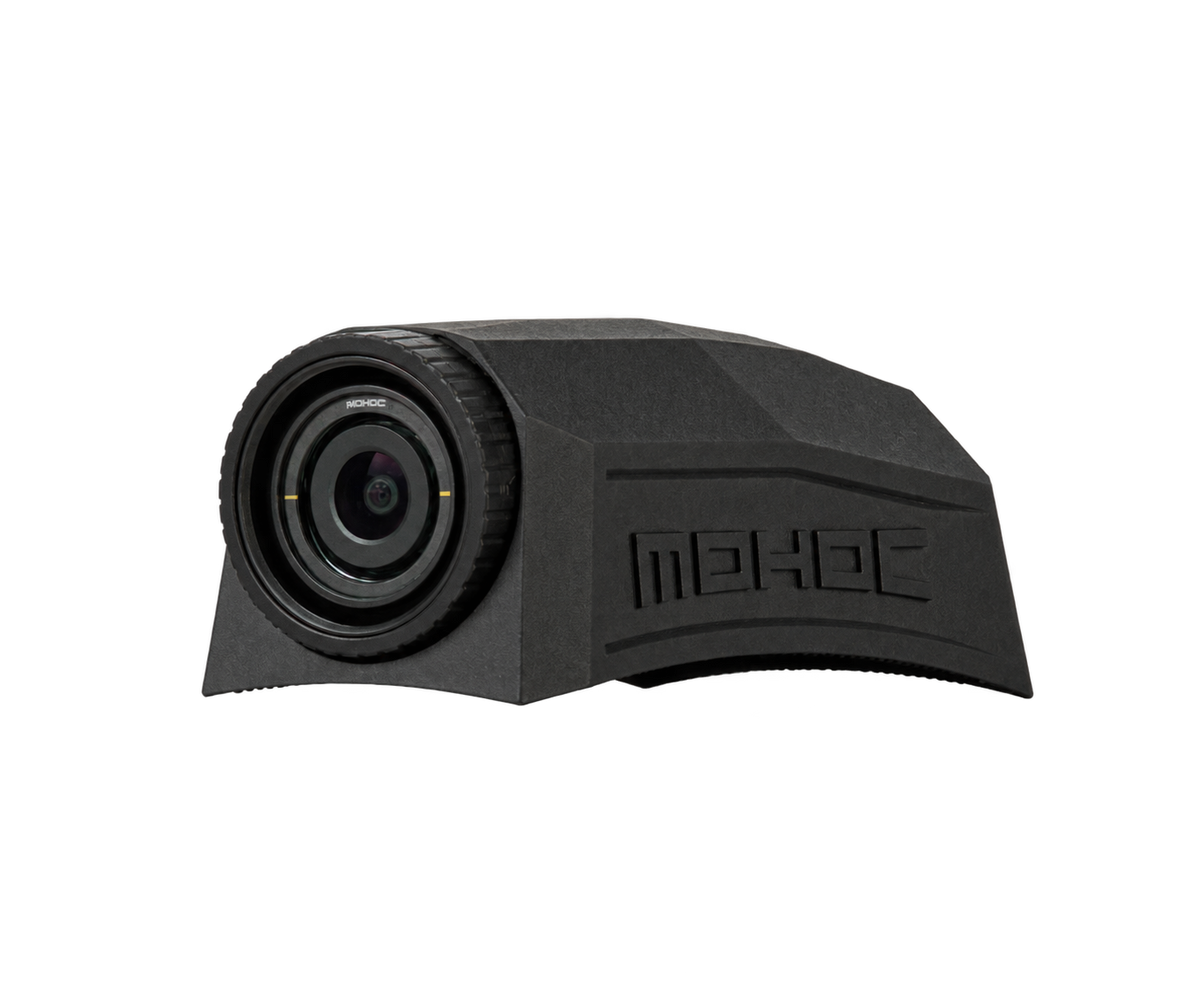

Choose Black, Tan or MIL Green. Every order includes the camera, two industrial-strength black VELCRO loop strips and a camera bag.
Host devices, software, network service and video servers are separate.
Specifications and setup
Before you
connect.
Camera specifications, host requirements and ordering details.
How does it work with TAK?+
Use HelmCam and its TAK plugin on a compatible Android host. Streaming to other users requires the appropriate cellular or tactical radio connection and video server.
Which version is this?+
MOHOC 2 in the UVC-USB variant, with a fixed standard USB-A cable. This listing does not include the IP, SDI or removable Glenair connector versions.
What are the video specifications?+
MJPEG output at 1920 × 1080 or 720p, up to 25/30 fps. A back-illuminated 1/2.8-inch CMOS sensor provides low-light capture, with automatic exposure, white balance and gain.
What are its operating limits?+
The manufacturer specifies a 2m drop test and an operating range of −10°C to +55°C. Confirm environmental and connector requirements for your deployment before ordering.
When will my camera ship?+
MOHOC cameras are built to order. The manufacturer estimates approximately 120 days after receipt of order. Contact our team to confirm timing and host compatibility.
Need help matching the camera to your EUD or radio?
Talk to our team →MOHOC 2
Add a live view to your field setup.
Talk with our team about host compatibility, connection requirements and deployment timing.
